0x00 前言

​ 有时候会发现一种情况，用正常浏览器可以访问，但是用脚本或者挂一下代理访问https的网站就直接405禁止访问了。

​ 这种情况就有可能是 识别了你的TLS指纹，这种情况换随机UA都是没什么用的。

image-20220208160912763

​ 查阅资料之后，发现应该是waf识别你的TLS指纹，标记为恶意直接禁止了，其中识别的算法主要是利用JA3和JA3S实现TLS指纹识别功能，所以学习了一下。

0x01 实际测试一下

测试代码

第一步，我们就看看我们的特征是什么，测试一下到底改hearder方法行不行。代码是测试代码，主要就是重复发包看一下特征。

主要有三种：修改过tls的，原生的，改header头的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
# author: Zeo
# python: 3.7
# software: PyCharm

"""
文件说明：
"""
import requests
import random
import requests
from requests.adapters import HTTPAdapter
from requests.packages.urllib3.util.ssl_ import create_urllib3_context

ORIGIN_CIPHERS = (
    'ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:ECDH+HIGH:DH+HIGH:ECDH+3DES:DH+3DES:RSA+AESGCM:RSA+AES:RSA+HIGH:RSA+3DES')


class DESAdapter(HTTPAdapter):
    def __init__(self, *args, **kwargs):
        # 在请求中重新启用 3DES 支持的 TransportAdapter
        CIPHERS = ORIGIN_CIPHERS.split(":")
        random.shuffle(CIPHERS)
        # print("1:", CIPHERS)
        CIPHERS = ":".join(CIPHERS)
        # print("2:", CIPHERS)
        self.COPHERS = CIPHERS + ":!aNULL:!eNULL:!MD5"
        super(DESAdapter, self).__init__(*args, **kwargs)

    # 在一般情况下，当我们实现一个子类的时候，__init__的第一行应该是super().__init__(*args, **kwargs)，
    # 但是由于init_poolmanager和proxy_manager_for是复写了父类的两个方法，
    # 这两个方法是在执行super().__init__(*args, **kwargs)的时候就执行的。
    # 所以，我们随机设置 Cipher Suits 的时候，需要放在super().__init__(*args, **kwargs)的前面。
    def init_poolmanager(self, *args, **kwargs):
        context = create_urllib3_context(ciphers=self.COPHERS)
        kwargs["ssl_context"] = context
        return super(DESAdapter, self).init_poolmanager(*args, **kwargs)

    def proxy_manager_for(self, *args, **kwargs):
        context = create_urllib3_context(ciphers=self.COPHERS)
        kwargs["ssl_context"] = context


if __name__ == '__main__':
    headers = {
        'User-Agent': 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/92.0.4515.131 Safari/537.36 Edg/92.0.902.67'}
    s = requests.Session()
    s.headers.update(headers)

    print("修改TSL 加密算发")
    for _ in range(3):
        # 其中，s.mount的第一个参数表示这个适配器只在https://ja3er.com开头的网址中生效
        s.mount("https://ja3er.com", DESAdapter())
        response = s.get("https://ja3er.com/json").json()
        print(response)

    print("原生 requests.get")
    for _ in range(3):
        res = requests.get(url="https://ja3er.com/json").json()
        print(res)
    print("修改 hearder requests.get")
    for _ in range(3):
        SignHeaders = {
            'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/56.0.2924.87 Safari/537.36',
            'Accept': 'application/json, text/plain, */*',
            'Accept-Language': 'zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2',
            'Accept-Encoding': 'gzip, deflate',
            'Connection': 'close',
            'Referer': 'https://www.baidu.com/',
        }
        res = requests.get(url="https://ja3er.com/json", headers=SignHeaders).json()
        print(res)

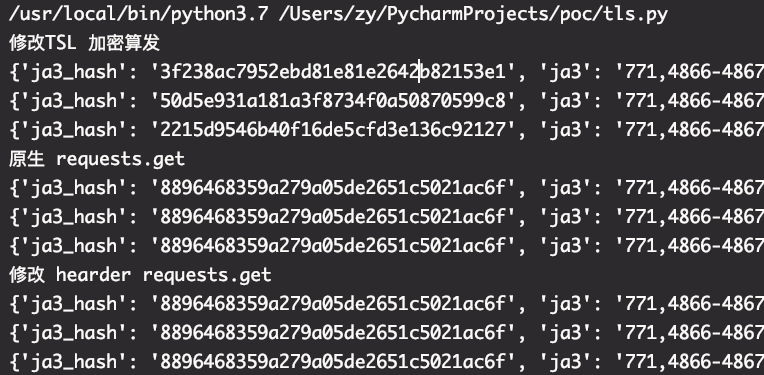

测试结果如下

image-20220208110639399

  • 也就是说我们修改hearder这个东西里面字段（User-Agent，Referer,各种东西）其实都不会影响这个指纹，因为他是计算 SSL中TLS得出的
  • 用python的requests库发包，ja3_hash一直都是一个固定值
  • 8896468359a279a05de2651c5021ac6f
  • 所以我们可以使用TLS Client Hello数据包中的详细信息对客户端应用程序进行指纹识别。我们按照这个作为规则，就可以直接禁止调python的原生脚本

百度之后发现这个检测算法，叫做JA3算法

0x02 JA3算法

JA3就是一种在线识别TLS客户端指纹的方法

JA3 算法收集了 SSL 请求里面的信息，包括但不限于 SSL/TLS 版本，Cipher Suites数量，浏览器扩展列表，elliptic curves等等。

image-20220208143328727

这些字段的顺序如下所示：

TLSVersion，Ciphers，Extensions，EllipticCurves，EllipticCurvePointFormats

例如：

1
771,4866-4867-4865-49196-49200-49195-49199-52393-52392-159-158-52394-49327-49325-49326-49324-49188-49192-49187-49191-49162-49172-49161-49171-49315-49311-49314-49310-107-103-57-51-157-156-49313-49309-49312-49308-61-60-53-47-255,0-11-10-16-22-23-49-13-43-45-51-21,29-23-1035-25-24,0-1-2

如果Client Hello数据包中没有TLS扩展（TLS Extensions），则这些字段的值为空。

然后，会计算这些字符串的MD5哈希值，以生成易于使用和共享的长度为32字符的指纹。它们就是JA3 TLS客户端的指纹。

1
ja3_hash = 8896468359a279a05de2651c5021ac6f

对于每个客户端来说，总是以相同的方式进行相应，所以JA3指纹就是唯一的。

0x03 wireshark抓包

正常浏览器可以访问 https://ja3er.com/json 这个站点，查看自己的ja3hash，可以看到每个浏览器都不一样的

image-20220208111214685

下面是具体的wireshark抓包，查看一下具体的细节

Chrome

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
Transport Layer Security
    TLSv1.2 Record Layer: Handshake Protocol: Client Hello
        Content Type: Handshake (22)
        Version: TLS 1.0 (0x0301)
        Length: 512
        Handshake Protocol: Client Hello
            Handshake Type: Client Hello (1)
            Length: 508
            Version: TLS 1.2 (0x0303)
            Random: eec68fa63c113f8ce38c2eb99a7731f47240f96a42e96f11148abcc2aefc1593
                GMT Unix Time: Dec 10, 2096 23:05:10.000000000 CST
                Random Bytes: 3c113f8ce38c2eb99a7731f47240f96a42e96f11148abcc2aefc1593
            Session ID Length: 32
            Session ID: acfa18829ca99b15a5aeed76ac5179f390ce296e9d7d8b426bf5b5a262014a58
            Cipher Suites Length: 32
            Cipher Suites (16 suites)
                Cipher Suite: Reserved (GREASE) (0xdada)
                Cipher Suite: TLS_AES_128_GCM_SHA256 (0x1301)
                Cipher Suite: TLS_AES_256_GCM_SHA384 (0x1302)
                Cipher Suite: TLS_CHACHA20_POLY1305_SHA256 (0x1303)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 (0xc02b)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256 (0xc02f)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384 (0xc02c)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 (0xc030)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256 (0xcca9)
                Cipher Suite: TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256 (0xcca8)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA (0xc013)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA (0xc014)
                Cipher Suite: TLS_RSA_WITH_AES_128_GCM_SHA256 (0x009c)
                Cipher Suite: TLS_RSA_WITH_AES_256_GCM_SHA384 (0x009d)
                Cipher Suite: TLS_RSA_WITH_AES_128_CBC_SHA (0x002f)
                Cipher Suite: TLS_RSA_WITH_AES_256_CBC_SHA (0x0035)
            Compression Methods Length: 1
            Compression Methods (1 method)
                Compression Method: null (0)
            Extensions Length: 403
            Extension: Reserved (GREASE) (len=0)
                Type: Reserved (GREASE) (47802)
                Length: 0
                Data: <MISSING>
            Extension: server_name (len=14)
                Type: server_name (0)
                Length: 14
                Server Name Indication extension
                    Server Name list length: 12
                    Server Name Type: host_name (0)
                    Server Name length: 9
                    Server Name: ja3er.com
            Extension: extended_master_secret (len=0)
                Type: extended_master_secret (23)
                Length: 0
            Extension: renegotiation_info (len=1)
                Type: renegotiation_info (65281)
                Length: 1
                Renegotiation Info extension
                    Renegotiation info extension length: 0
            Extension: supported_groups (len=10)
                Type: supported_groups (10)
                Length: 10
                Supported Groups List Length: 8
                Supported Groups (4 groups)
                    Supported Group: Reserved (GREASE) (0xdada)
                    Supported Group: x25519 (0x001d)
                    Supported Group: secp256r1 (0x0017)
                    Supported Group: secp384r1 (0x0018)
            Extension: ec_point_formats (len=2)
                Type: ec_point_formats (11)
                Length: 2
                EC point formats Length: 1
                Elliptic curves point formats (1)
                    EC point format: uncompressed (0)
            Extension: session_ticket (len=0)
                Type: session_ticket (35)
                Length: 0
                Data (0 bytes)
            Extension: application_layer_protocol_negotiation (len=14)
                Type: application_layer_protocol_negotiation (16)
                Length: 14
                ALPN Extension Length: 12
                ALPN Protocol
                    ALPN string length: 2
                    ALPN Next Protocol: h2
                    ALPN string length: 8
                    ALPN Next Protocol: http/1.1
            Extension: status_request (len=5)
                Type: status_request (5)
                Length: 5
                Certificate Status Type: OCSP (1)
                Responder ID list Length: 0
                Request Extensions Length: 0
            Extension: signature_algorithms (len=18)
                Type: signature_algorithms (13)
                Length: 18
                Signature Hash Algorithms Length: 16
                Signature Hash Algorithms (8 algorithms)
                    Signature Algorithm: ecdsa_secp256r1_sha256 (0x0403)
                        Signature Hash Algorithm Hash: SHA256 (4)
                        Signature Hash Algorithm Signature: ECDSA (3)
                    Signature Algorithm: rsa_pss_rsae_sha256 (0x0804)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: SM2 (4)
                    Signature Algorithm: rsa_pkcs1_sha256 (0x0401)
                        Signature Hash Algorithm Hash: SHA256 (4)
                        Signature Hash Algorithm Signature: RSA (1)
                    Signature Algorithm: ecdsa_secp384r1_sha384 (0x0503)
                        Signature Hash Algorithm Hash: SHA384 (5)
                        Signature Hash Algorithm Signature: ECDSA (3)
                    Signature Algorithm: rsa_pss_rsae_sha384 (0x0805)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (5)
                    Signature Algorithm: rsa_pkcs1_sha384 (0x0501)
                        Signature Hash Algorithm Hash: SHA384 (5)
                        Signature Hash Algorithm Signature: RSA (1)
                    Signature Algorithm: rsa_pss_rsae_sha512 (0x0806)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (6)
                    Signature Algorithm: rsa_pkcs1_sha512 (0x0601)
                        Signature Hash Algorithm Hash: SHA512 (6)
                        Signature Hash Algorithm Signature: RSA (1)
            Extension: signed_certificate_timestamp (len=0)
                Type: signed_certificate_timestamp (18)
                Length: 0
            Extension: key_share (len=43)
                Type: key_share (51)
                Length: 43
                Key Share extension
                    Client Key Share Length: 41
                    Key Share Entry: Group: Reserved (GREASE), Key Exchange length: 1
                        Group: Reserved (GREASE) (56026)
                        Key Exchange Length: 1
                        Key Exchange: 00
                    Key Share Entry: Group: x25519, Key Exchange length: 32
                        Group: x25519 (29)
                        Key Exchange Length: 32
                        Key Exchange: aa67c165af9f638e61122b18e646e664d62f0ea0f4cc82736528b0b1d1122c76
            Extension: psk_key_exchange_modes (len=2)
                Type: psk_key_exchange_modes (45)
                Length: 2
                PSK Key Exchange Modes Length: 1
                PSK Key Exchange Mode: PSK with (EC)DHE key establishment (psk_dhe_ke) (1)
            Extension: supported_versions (len=11)
                Type: supported_versions (43)
                Length: 11
                Supported Versions length: 10
                Supported Version: Reserved (GREASE) (0xfafa)
                Supported Version: TLS 1.3 (0x0304)
                Supported Version: TLS 1.2 (0x0303)
                Supported Version: TLS 1.1 (0x0302)
                Supported Version: TLS 1.0 (0x0301)
            Extension: compress_certificate (len=3)
                Type: compress_certificate (27)
                Length: 3
                Algorithms Length: 2
                Algorithm: brotli (2)
            Extension: application_settings (len=5)
                Type: application_settings (17513)
                Length: 5
                ALPS Extension Length: 3
                Supported ALPN List
                    Supported ALPN Length: 2
                    Supported ALPN: h2
            Extension: Reserved (GREASE) (len=1)
                Type: Reserved (GREASE) (35466)
                Length: 1
                Data: 00
            Extension: padding (len=202)
                Type: padding (21)
                Length: 202
                Padding Data: 000000000000000000000000000000000000000000000000000000000000000000000000…

python requests库

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
Transport Layer Security
    TLSv1.2 Record Layer: Handshake Protocol: Client Hello
        Content Type: Handshake (22)
        Version: TLS 1.0 (0x0301)
        Length: 512
        Handshake Protocol: Client Hello
            Handshake Type: Client Hello (1)
            Length: 508
            Version: TLS 1.2 (0x0303)
            Random: 084798dbb21089e33b2654ccf48fa618a69a0a24d332e28bc63b3179423e9c9c
                GMT Unix Time: May 28, 1974 02:05:15.000000000 CST
                Random Bytes: b21089e33b2654ccf48fa618a69a0a24d332e28bc63b3179423e9c9c
            Session ID Length: 32
            Session ID: 72282eef35a39d03f55111dcbda2f2175bbf746ec8d9cd11aa70505104b18450
            Cipher Suites Length: 86
            Cipher Suites (43 suites)
                Cipher Suite: TLS_AES_256_GCM_SHA384 (0x1302)
                Cipher Suite: TLS_CHACHA20_POLY1305_SHA256 (0x1303)
                Cipher Suite: TLS_AES_128_GCM_SHA256 (0x1301)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384 (0xc02c)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 (0xc030)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 (0xc02b)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256 (0xc02f)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256 (0xcca9)
                Cipher Suite: TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256 (0xcca8)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_256_GCM_SHA384 (0x009f)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_128_GCM_SHA256 (0x009e)
                Cipher Suite: TLS_DHE_RSA_WITH_CHACHA20_POLY1305_SHA256 (0xccaa)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_CCM_8 (0xc0af)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_CCM (0xc0ad)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_CCM_8 (0xc0ae)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_CCM (0xc0ac)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384 (0xc024)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384 (0xc028)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256 (0xc023)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256 (0xc027)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA (0xc00a)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA (0xc014)
                Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA (0xc009)
                Cipher Suite: TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA (0xc013)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_256_CCM_8 (0xc0a3)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_256_CCM (0xc09f)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_128_CCM_8 (0xc0a2)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_128_CCM (0xc09e)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_256_CBC_SHA256 (0x006b)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_128_CBC_SHA256 (0x0067)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_256_CBC_SHA (0x0039)
                Cipher Suite: TLS_DHE_RSA_WITH_AES_128_CBC_SHA (0x0033)
                Cipher Suite: TLS_RSA_WITH_AES_256_GCM_SHA384 (0x009d)
                Cipher Suite: TLS_RSA_WITH_AES_128_GCM_SHA256 (0x009c)
                Cipher Suite: TLS_RSA_WITH_AES_256_CCM_8 (0xc0a1)
                Cipher Suite: TLS_RSA_WITH_AES_256_CCM (0xc09d)
                Cipher Suite: TLS_RSA_WITH_AES_128_CCM_8 (0xc0a0)
                Cipher Suite: TLS_RSA_WITH_AES_128_CCM (0xc09c)
                Cipher Suite: TLS_RSA_WITH_AES_256_CBC_SHA256 (0x003d)
                Cipher Suite: TLS_RSA_WITH_AES_128_CBC_SHA256 (0x003c)
                Cipher Suite: TLS_RSA_WITH_AES_256_CBC_SHA (0x0035)
                Cipher Suite: TLS_RSA_WITH_AES_128_CBC_SHA (0x002f)
                Cipher Suite: TLS_EMPTY_RENEGOTIATION_INFO_SCSV (0x00ff)
            Compression Methods Length: 1
            Compression Methods (1 method)
                Compression Method: null (0)
            Extensions Length: 349
            Extension: server_name (len=14)
                Type: server_name (0)
                Length: 14
                Server Name Indication extension
                    Server Name list length: 12
                    Server Name Type: host_name (0)
                    Server Name length: 9
                    Server Name: ja3er.com
            Extension: ec_point_formats (len=4)
                Type: ec_point_formats (11)
                Length: 4
                EC point formats Length: 3
                Elliptic curves point formats (3)
                    EC point format: uncompressed (0)
                    EC point format: ansiX962_compressed_prime (1)
                    EC point format: ansiX962_compressed_char2 (2)
            Extension: supported_groups (len=12)
                Type: supported_groups (10)
                Length: 12
                Supported Groups List Length: 10
                Supported Groups (5 groups)
                    Supported Group: x25519 (0x001d)
                    Supported Group: secp256r1 (0x0017)
                    Supported Group: x448 (0x001e)
                    Supported Group: secp521r1 (0x0019)
                    Supported Group: secp384r1 (0x0018)
            Extension: application_layer_protocol_negotiation (len=11)
                Type: application_layer_protocol_negotiation (16)
                Length: 11
                ALPN Extension Length: 9
                ALPN Protocol
                    ALPN string length: 8
                    ALPN Next Protocol: http/1.1
            Extension: encrypt_then_mac (len=0)
                Type: encrypt_then_mac (22)
                Length: 0
            Extension: extended_master_secret (len=0)
                Type: extended_master_secret (23)
                Length: 0
            Extension: post_handshake_auth (len=0)
                Type: post_handshake_auth (49)
                Length: 0
            Extension: signature_algorithms (len=48)
                Type: signature_algorithms (13)
                Length: 48
                Signature Hash Algorithms Length: 46
                Signature Hash Algorithms (23 algorithms)
                    Signature Algorithm: ecdsa_secp256r1_sha256 (0x0403)
                        Signature Hash Algorithm Hash: SHA256 (4)
                        Signature Hash Algorithm Signature: ECDSA (3)
                    Signature Algorithm: ecdsa_secp384r1_sha384 (0x0503)
                        Signature Hash Algorithm Hash: SHA384 (5)
                        Signature Hash Algorithm Signature: ECDSA (3)
                    Signature Algorithm: ecdsa_secp521r1_sha512 (0x0603)
                        Signature Hash Algorithm Hash: SHA512 (6)
                        Signature Hash Algorithm Signature: ECDSA (3)
                    Signature Algorithm: ed25519 (0x0807)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (7)
                    Signature Algorithm: ed448 (0x0808)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (8)
                    Signature Algorithm: rsa_pss_pss_sha256 (0x0809)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (9)
                    Signature Algorithm: rsa_pss_pss_sha384 (0x080a)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (10)
                    Signature Algorithm: rsa_pss_pss_sha512 (0x080b)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (11)
                    Signature Algorithm: rsa_pss_rsae_sha256 (0x0804)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: SM2 (4)
                    Signature Algorithm: rsa_pss_rsae_sha384 (0x0805)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (5)
                    Signature Algorithm: rsa_pss_rsae_sha512 (0x0806)
                        Signature Hash Algorithm Hash: Unknown (8)
                        Signature Hash Algorithm Signature: Unknown (6)
                    Signature Algorithm: rsa_pkcs1_sha256 (0x0401)
                        Signature Hash Algorithm Hash: SHA256 (4)
                        Signature Hash Algorithm Signature: RSA (1)
                    Signature Algorithm: rsa_pkcs1_sha384 (0x0501)
                        Signature Hash Algorithm Hash: SHA384 (5)
                        Signature Hash Algorithm Signature: RSA (1)
                    Signature Algorithm: rsa_pkcs1_sha512 (0x0601)
                        Signature Hash Algorithm Hash: SHA512 (6)
                        Signature Hash Algorithm Signature: RSA (1)
                    Signature Algorithm: SHA224 ECDSA (0x0303)
                        Signature Hash Algorithm Hash: SHA224 (3)
                        Signature Hash Algorithm Signature: ECDSA (3)
                    Signature Algorithm: ecdsa_sha1 (0x0203)
                        Signature Hash Algorithm Hash: SHA1 (2)
                        Signature Hash Algorithm Signature: ECDSA (3)
                    Signature Algorithm: SHA224 RSA (0x0301)
                        Signature Hash Algorithm Hash: SHA224 (3)
                        Signature Hash Algorithm Signature: RSA (1)
                    Signature Algorithm: rsa_pkcs1_sha1 (0x0201)
                        Signature Hash Algorithm Hash: SHA1 (2)
                        Signature Hash Algorithm Signature: RSA (1)
                    Signature Algorithm: SHA224 DSA (0x0302)
                        Signature Hash Algorithm Hash: SHA224 (3)
                        Signature Hash Algorithm Signature: DSA (2)
                    Signature Algorithm: SHA1 DSA (0x0202)
                        Signature Hash Algorithm Hash: SHA1 (2)
                        Signature Hash Algorithm Signature: DSA (2)
                    Signature Algorithm: SHA256 DSA (0x0402)
                        Signature Hash Algorithm Hash: SHA256 (4)
                        Signature Hash Algorithm Signature: DSA (2)
                    Signature Algorithm: SHA384 DSA (0x0502)
                        Signature Hash Algorithm Hash: SHA384 (5)
                        Signature Hash Algorithm Signature: DSA (2)
                    Signature Algorithm: SHA512 DSA (0x0602)
                        Signature Hash Algorithm Hash: SHA512 (6)
                        Signature Hash Algorithm Signature: DSA (2)
            Extension: supported_versions (len=9)
                Type: supported_versions (43)
                Length: 9
                Supported Versions length: 8
                Supported Version: TLS 1.3 (0x0304)
                Supported Version: TLS 1.2 (0x0303)
                Supported Version: TLS 1.1 (0x0302)
                Supported Version: TLS 1.0 (0x0301)
            Extension: psk_key_exchange_modes (len=2)
                Type: psk_key_exchange_modes (45)
                Length: 2
                PSK Key Exchange Modes Length: 1
                PSK Key Exchange Mode: PSK with (EC)DHE key establishment (psk_dhe_ke) (1)
            Extension: key_share (len=38)
                Type: key_share (51)
                Length: 38
                Key Share extension
                    Client Key Share Length: 36
                    Key Share Entry: Group: x25519, Key Exchange length: 32
                        Group: x25519 (29)
                        Key Exchange Length: 32
                        Key Exchange: 3fc6f2011e3b8c3d6a5728886dda249793d98739b968a6b14c70ae4929a4ee4a
            Extension: padding (len=163)
                Type: padding (21)
                Length: 163
                Padding Data: 000000000000000000000000000000000000000000000000000000000000000000000000…

Burp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
TLSv1.2 Record Layer: Handshake Protocol: Client Hello
    Content Type: Handshake (22)
    Version: TLS 1.2 (0x0303)
    Length: 707
    Handshake Protocol: Client Hello
        Handshake Type: Client Hello (1)
        Length: 703
        Version: TLS 1.2 (0x0303)
        Random: 9c9c8d20358ad1f04427cb7f47b87a05cc7df36e9f8620e34189c7d9d7c4c394
            GMT Unix Time: Apr  6, 2053 06:37:20.000000000 CST
            Random Bytes: 358ad1f04427cb7f47b87a05cc7df36e9f8620e34189c7d9d7c4c394
        Session ID Length: 32
        Session ID: 936def16329bcf32ee79aec0d9df57df057fabef59bebe3c2fad454c8ae5956f
        Cipher Suites Length: 112
        Cipher Suites (56 suites)
            Cipher Suite: TLS_AES_256_GCM_SHA384 (0x1302)
            Cipher Suite: TLS_AES_128_GCM_SHA256 (0x1301)
            Cipher Suite: TLS_CHACHA20_POLY1305_SHA256 (0x1303)
            Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384 (0xc02c)
            Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 (0xc02b)
            Cipher Suite: TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256 (0xcca9)
            Cipher Suite: TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 (0xc030)
            Cipher Suite: TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256 (0xcca8)
            Cipher Suite: TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256 (0xc02f)
            Cipher Suite: TLS_DHE_RSA_WITH_AES_256_GCM_SHA384 (0x009f)
            Cipher Suite: TLS_DHE_RSA_WITH_CHACHA20_POLY1305_SHA256 (0xccaa)
            Cipher Suite: TLS_DHE_DSS_WITH_AES_256_GCM_SHA384 (0x00a3)
            Cipher Suite: TLS_DHE_RSA_WITH_AES_128_GCM_SHA256 (0x009e)
            Cipher Suite: TLS_DHE_DSS_WITH_AES_128_GCM_SHA256 (0x00a2)
            Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384 (0xc024)
            Cipher Suite: TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384 (0xc028)
            Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256 (0xc023)
            Cipher Suite: TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256 (0xc027)
            Cipher Suite: TLS_DHE_RSA_WITH_AES_256_CBC_SHA256 (0x006b)
            Cipher Suite: TLS_DHE_DSS_WITH_AES_256_CBC_SHA256 (0x006a)
            Cipher Suite: TLS_DHE_RSA_WITH_AES_128_CBC_SHA256 (0x0067)
            Cipher Suite: TLS_DHE_DSS_WITH_AES_128_CBC_SHA256 (0x0040)
            Cipher Suite: TLS_ECDH_ECDSA_WITH_AES_256_GCM_SHA384 (0xc02e)
            Cipher Suite: TLS_ECDH_RSA_WITH_AES_256_GCM_SHA384 (0xc032)
            Cipher Suite: TLS_ECDH_ECDSA_WITH_AES_128_GCM_SHA256 (0xc02d)
            Cipher Suite: TLS_ECDH_RSA_WITH_AES_128_GCM_SHA256 (0xc031)
            Cipher Suite: TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA384 (0xc026)
            Cipher Suite: TLS_ECDH_RSA_WITH_AES_256_CBC_SHA384 (0xc02a)
            Cipher Suite: TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA256 (0xc025)
            Cipher Suite: TLS_ECDH_RSA_WITH_AES_128_CBC_SHA256 (0xc029)
            Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA (0xc00a)
            Cipher Suite: TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA (0xc014)
            Cipher Suite: TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA (0xc009)
            Cipher Suite: TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA (0xc013)
            Cipher Suite: TLS_DHE_RSA_WITH_AES_256_CBC_SHA (0x0039)
            Cipher Suite: TLS_DHE_DSS_WITH_AES_256_CBC_SHA (0x0038)
            Cipher Suite: TLS_DHE_RSA_WITH_AES_128_CBC_SHA (0x0033)
            Cipher Suite: TLS_DHE_DSS_WITH_AES_128_CBC_SHA (0x0032)
            Cipher Suite: TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA (0xc005)
            Cipher Suite: TLS_ECDH_RSA_WITH_AES_256_CBC_SHA (0xc00f)
            Cipher Suite: TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA (0xc004)
            Cipher Suite: TLS_ECDH_RSA_WITH_AES_128_CBC_SHA (0xc00e)
            Cipher Suite: TLS_RSA_WITH_AES_256_GCM_SHA384 (0x009d)
            Cipher Suite: TLS_RSA_WITH_AES_128_GCM_SHA256 (0x009c)
            Cipher Suite: TLS_RSA_WITH_AES_256_CBC_SHA256 (0x003d)
            Cipher Suite: TLS_RSA_WITH_AES_128_CBC_SHA256 (0x003c)
            Cipher Suite: TLS_RSA_WITH_AES_256_CBC_SHA (0x0035)
            Cipher Suite: TLS_RSA_WITH_AES_128_CBC_SHA (0x002f)
            Cipher Suite: TLS_ECDHE_ECDSA_WITH_3DES_EDE_CBC_SHA (0xc008)
            Cipher Suite: TLS_ECDHE_RSA_WITH_3DES_EDE_CBC_SHA (0xc012)
            Cipher Suite: TLS_DHE_RSA_WITH_3DES_EDE_CBC_SHA (0x0016)
            Cipher Suite: TLS_DHE_DSS_WITH_3DES_EDE_CBC_SHA (0x0013)
            Cipher Suite: TLS_ECDH_ECDSA_WITH_3DES_EDE_CBC_SHA (0xc003)
            Cipher Suite: TLS_ECDH_RSA_WITH_3DES_EDE_CBC_SHA (0xc00d)
            Cipher Suite: TLS_RSA_WITH_3DES_EDE_CBC_SHA (0x000a)
            Cipher Suite: TLS_EMPTY_RENEGOTIATION_INFO_SCSV (0x00ff)
        Compression Methods Length: 1
        Compression Methods (1 method)
            Compression Method: null (0)
        Extensions Length: 518
        Extension: server_name (len=14)
            Type: server_name (0)
            Length: 14
            Server Name Indication extension
                Server Name list length: 12
                Server Name Type: host_name (0)
                Server Name length: 9
                Server Name: ja3er.com
        Extension: status_request (len=5)
            Type: status_request (5)
            Length: 5
            Certificate Status Type: OCSP (1)
            Responder ID list Length: 0
            Request Extensions Length: 0
        Extension: supported_groups (len=22)
            Type: supported_groups (10)
            Length: 22
            Supported Groups List Length: 20
            Supported Groups (10 groups)
                Supported Group: x25519 (0x001d)
                Supported Group: secp256r1 (0x0017)
                Supported Group: secp384r1 (0x0018)
                Supported Group: secp521r1 (0x0019)
                Supported Group: x448 (0x001e)
                Supported Group: ffdhe2048 (0x0100)
                Supported Group: ffdhe3072 (0x0101)
                Supported Group: ffdhe4096 (0x0102)
                Supported Group: ffdhe6144 (0x0103)
                Supported Group: ffdhe8192 (0x0104)
        Extension: ec_point_formats (len=2)
            Type: ec_point_formats (11)
            Length: 2
            EC point formats Length: 1
            Elliptic curves point formats (1)
                EC point format: uncompressed (0)
        Extension: signature_algorithms (len=46)
            Type: signature_algorithms (13)
            Length: 46
            Signature Hash Algorithms Length: 44
            Signature Hash Algorithms (22 algorithms)
                Signature Algorithm: ecdsa_secp256r1_sha256 (0x0403)
                    Signature Hash Algorithm Hash: SHA256 (4)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: ecdsa_secp384r1_sha384 (0x0503)
                    Signature Hash Algorithm Hash: SHA384 (5)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: ecdsa_secp521r1_sha512 (0x0603)
                    Signature Hash Algorithm Hash: SHA512 (6)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: ed25519 (0x0807)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (7)
                Signature Algorithm: ed448 (0x0808)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (8)
                Signature Algorithm: rsa_pss_rsae_sha256 (0x0804)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: SM2 (4)
                Signature Algorithm: rsa_pss_rsae_sha384 (0x0805)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (5)
                Signature Algorithm: rsa_pss_rsae_sha512 (0x0806)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (6)
                Signature Algorithm: rsa_pss_pss_sha256 (0x0809)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (9)
                Signature Algorithm: rsa_pss_pss_sha384 (0x080a)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (10)
                Signature Algorithm: rsa_pss_pss_sha512 (0x080b)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (11)
                Signature Algorithm: rsa_pkcs1_sha256 (0x0401)
                    Signature Hash Algorithm Hash: SHA256 (4)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: rsa_pkcs1_sha384 (0x0501)
                    Signature Hash Algorithm Hash: SHA384 (5)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: rsa_pkcs1_sha512 (0x0601)
                    Signature Hash Algorithm Hash: SHA512 (6)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: SHA256 DSA (0x0402)
                    Signature Hash Algorithm Hash: SHA256 (4)
                    Signature Hash Algorithm Signature: DSA (2)
                Signature Algorithm: SHA224 ECDSA (0x0303)
                    Signature Hash Algorithm Hash: SHA224 (3)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: SHA224 RSA (0x0301)
                    Signature Hash Algorithm Hash: SHA224 (3)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: SHA224 DSA (0x0302)
                    Signature Hash Algorithm Hash: SHA224 (3)
                    Signature Hash Algorithm Signature: DSA (2)
                Signature Algorithm: ecdsa_sha1 (0x0203)
                    Signature Hash Algorithm Hash: SHA1 (2)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: rsa_pkcs1_sha1 (0x0201)
                    Signature Hash Algorithm Hash: SHA1 (2)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: SHA1 DSA (0x0202)
                    Signature Hash Algorithm Hash: SHA1 (2)
                    Signature Hash Algorithm Signature: DSA (2)
                Signature Algorithm: MD5 RSA (0x0101)
                    Signature Hash Algorithm Hash: MD5 (1)
                    Signature Hash Algorithm Signature: RSA (1)
        Extension: signature_algorithms_cert (len=46)
            Type: signature_algorithms_cert (50)
            Length: 46
            Signature Hash Algorithms Length: 44
            Signature Hash Algorithms (22 algorithms)
                Signature Algorithm: ecdsa_secp256r1_sha256 (0x0403)
                    Signature Hash Algorithm Hash: SHA256 (4)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: ecdsa_secp384r1_sha384 (0x0503)
                    Signature Hash Algorithm Hash: SHA384 (5)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: ecdsa_secp521r1_sha512 (0x0603)
                    Signature Hash Algorithm Hash: SHA512 (6)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: ed25519 (0x0807)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (7)
                Signature Algorithm: ed448 (0x0808)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (8)
                Signature Algorithm: rsa_pss_rsae_sha256 (0x0804)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: SM2 (4)
                Signature Algorithm: rsa_pss_rsae_sha384 (0x0805)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (5)
                Signature Algorithm: rsa_pss_rsae_sha512 (0x0806)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (6)
                Signature Algorithm: rsa_pss_pss_sha256 (0x0809)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (9)
                Signature Algorithm: rsa_pss_pss_sha384 (0x080a)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (10)
                Signature Algorithm: rsa_pss_pss_sha512 (0x080b)
                    Signature Hash Algorithm Hash: Unknown (8)
                    Signature Hash Algorithm Signature: Unknown (11)
                Signature Algorithm: rsa_pkcs1_sha256 (0x0401)
                    Signature Hash Algorithm Hash: SHA256 (4)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: rsa_pkcs1_sha384 (0x0501)
                    Signature Hash Algorithm Hash: SHA384 (5)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: rsa_pkcs1_sha512 (0x0601)
                    Signature Hash Algorithm Hash: SHA512 (6)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: SHA256 DSA (0x0402)
                    Signature Hash Algorithm Hash: SHA256 (4)
                    Signature Hash Algorithm Signature: DSA (2)
                Signature Algorithm: SHA224 ECDSA (0x0303)
                    Signature Hash Algorithm Hash: SHA224 (3)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: SHA224 RSA (0x0301)
                    Signature Hash Algorithm Hash: SHA224 (3)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: SHA224 DSA (0x0302)
                    Signature Hash Algorithm Hash: SHA224 (3)
                    Signature Hash Algorithm Signature: DSA (2)
                Signature Algorithm: ecdsa_sha1 (0x0203)
                    Signature Hash Algorithm Hash: SHA1 (2)
                    Signature Hash Algorithm Signature: ECDSA (3)
                Signature Algorithm: rsa_pkcs1_sha1 (0x0201)
                    Signature Hash Algorithm Hash: SHA1 (2)
                    Signature Hash Algorithm Signature: RSA (1)
                Signature Algorithm: SHA1 DSA (0x0202)
                    Signature Hash Algorithm Hash: SHA1 (2)
                    Signature Hash Algorithm Signature: DSA (2)
                Signature Algorithm: MD5 RSA (0x0101)
                    Signature Hash Algorithm Hash: MD5 (1)
                    Signature Hash Algorithm Signature: RSA (1)
        Extension: status_request_v2 (len=9)
            Type: status_request_v2 (17)
            Length: 9
            Certificate Status List Length: 7
            Certificate Status Type: OCSP Multi (2)
            Certificate Status Length: 4
            Responder ID list Length: 0
            Request Extensions Length: 0
        Extension: extended_master_secret (len=0)
            Type: extended_master_secret (23)
            Length: 0
        Extension: session_ticket (len=208)
            Type: session_ticket (35)
            Length: 208
            Data (208 bytes)
        Extension: supported_versions (len=9)
            Type: supported_versions (43)
            Length: 9
            Supported Versions length: 8
            Supported Version: TLS 1.3 (0x0304)
            Supported Version: TLS 1.2 (0x0303)
            Supported Version: TLS 1.1 (0x0302)
            Supported Version: TLS 1.0 (0x0301)
        Extension: psk_key_exchange_modes (len=2)
            Type: psk_key_exchange_modes (45)
            Length: 2
            PSK Key Exchange Modes Length: 1
            PSK Key Exchange Mode: PSK with (EC)DHE key establishment (psk_dhe_ke) (1)
        Extension: key_share (len=107)
            Type: key_share (51)
            Length: 107
            Key Share extension
                Client Key Share Length: 105
                Key Share Entry: Group: x25519, Key Exchange length: 32
                    Group: x25519 (29)
                    Key Exchange Length: 32
                    Key Exchange: c8bec5524c23aeec01f4dc54f4f66d98f324033d7cb49bd962d43b3c80e93932
                Key Share Entry: Group: secp256r1, Key Exchange length: 65
                    Group: secp256r1 (23)
                    Key Exchange Length: 65
                    Key Exchange: 045596de0177e5db84f608492167e250e795cb511fb8f107487f6ba58964b211c71d014b…

compare对比一下

发现加密套件Cipher Suites 相差特别多

image-20220208141211573

0x04 问题解决

作为脚本小子，当让得bypass了这个，要不以后啥也干不了了，暂时找到了两种方法

  • 改自己的代码逻辑，
  • 直接修改底层的依赖包

方法一、修改上层代码

这个是参考网上的一段代码，大家可以自行修改一下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
import random
import requests
from requests.adapters import HTTPAdapter
from requests.packages.urllib3.util.ssl_ import create_urllib3_context

ORIGIN_CIPHERS = (
    'ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:ECDH+HIGH:DH+HIGH:ECDH+3DES:DH+3DES:RSA+AESGCM'
    ':RSA+AES:RSA+HIGH:RSA+3DES')


class DESAdapter(HTTPAdapter):
    def __init__(self, *args, **kwargs):
        # 在请求中重新启用 3DES 支持的 TransportAdapter
        CIPHERS = ORIGIN_CIPHERS.split(":")
        random.shuffle(CIPHERS)
        # print("1:", CIPHERS)
        CIPHERS = ":".join(CIPHERS)
        # print("2:", CIPHERS)
        self.COPHERS = CIPHERS + ":!aNULL:!eNULL:!MD5"
        super(DESAdapter, self).__init__(*args, **kwargs)

    # 在一般情况下，当我们实现一个子类的时候，__init__的第一行应该是super().__init__(*args, **kwargs)，
    # 但是由于init_poolmanager和proxy_manager_for是复写了父类的两个方法，
    # 这两个方法是在执行super().__init__(*args, **kwargs)的时候就执行的。
    # 所以，我们随机设置 Cipher Suits 的时候，需要放在super().__init__(*args, **kwargs)的前面。
    def init_poolmanager(self, *args, **kwargs):
        context = create_urllib3_context(ciphers=self.COPHERS)
        kwargs["ssl_context"] = context
        return super(DESAdapter, self).init_poolmanager(*args, **kwargs)

    def proxy_manager_for(self, *args, **kwargs):
        context = create_urllib3_context(ciphers=self.COPHERS)
        kwargs["ssl_context"] = context


if __name__ == '__main__':
    headers = {
        'User-Agent': 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/92.0.4515.131 Safari/537.36 Edg/92.0.902.67'}
    s = requests.Session()
    s.headers.update(headers)

    print("修改TSL 加密算发")
    for _ in range(3):
        # 其中，s.mount的第一个参数表示这个适配器只在https://ja3er.com开头的网址中生效
        s.mount("https://ja3er.com", DESAdapter())
        response = s.get("https://ja3er.com/json").json()
        print(response)

方法二、修改底层的依赖requests包

​ 还有一个问题，代码写多了，你不可能每个代码都改一下，那不得累死，除非你写之前就把发送数据包的函数封装好了，改一个就行，要不最好的方法就是把底层的依赖包直接改了。

​ 但是其实，Requests其实是对urllib3的一个封装，所以关键的还是在 urllib库

debug找到位置：

1
/usr/local/lib/python3.7/site-packages/urllib3/util/ssl_.py

image-20220208144845875

这个是原版的的加密库

image-20220208145318097

根据原理，是按照字段的顺序先算一遍，再hash计算一下

1
ja3': '771,4866-4867-4865-52394-49196-49200-49195-49199-159-158-52393-52

所以，为了最小程度变更而且不影响代码，我们只要吧Ciphers里面的加密算法调换一下顺序就好了。

image-20220208145944869

再用代码测试一下

image-20220208154450669

1
2
3
4
修改前：
8896468359a279a05de2651c5021ac6f
修改后：
ab2825e283c7103e84b2c96ea54e41e3

0x05 总结

​ 根据规则其实还有好多方法，只要你熟悉协议了解原理可以慢慢改，我这种不太懂的，就找一个最简单的方法，能实现就好了，太复杂怕把自己绕进去。。

​ 这里也只是改了一下python的代码，其他语言也是同理的。
